MyBatis Example - MyBatis + Spring


MyBatis là gì?
Cấu hình XML

Nội dung chính

  • Các công nghệ được sử dụng trong ví dụ này:
  • Cấu trúc project MyBatis + Spring
  • Các bước thực hiện
    • 1. Tạo project “mybatis-spring-example”
    • 2. Tạo bảng details.student
    • 3. Tạo lớp Student trong package vn.viettuts.mapper.entity
    • 4. Tạo file cấu hình MyBatis SqlMapConfig.xml trong resources
    • 5. Tạo file mapper Student.xml
    • 6. Tạo interface StudentMapper.java
    • 7. Tạo file AppConfig.java
    • 8. Tạo Student Service
    • 9. Tạo class test StudentTest.java

Các công nghệ được sử dụng trong ví dụ này:

  • Eclipse KEPLER SR2
  • MySQL 5.0.11
  • JDK 1.8
  • MyBatis 3.3.0
  • Spring 4.3.6

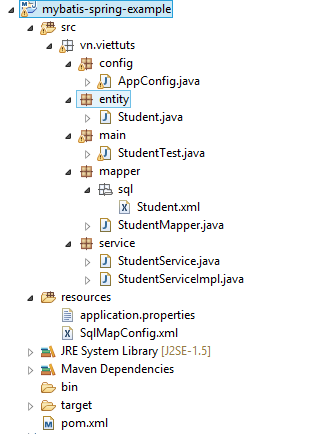

Cấu trúc project MyBatis + Spring

cau-truc-project-mybatis-spring-example

Các bước thực hiện

1. Tạo project “mybatis-spring-example”

Các bạn tạo project có tên “mybatis-spring-example” như trong bài hướng dẫn Tạo MyBatis project trong eclipse

Add các dependency vào file pom.xml

    <dependencies>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.6</version>
        </dependency>
        <!-- MyBatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.3.0</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>4.3.6.RELEASE</version>
        </dependency>
        <!-- Spring core -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>4.3.6.RELEASE</version>
            <scope>provided</scope>
        </dependency>
        <!-- Spring context -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>4.3.6.RELEASE</version>
        </dependency>
    </dependencies>

2. Tạo bảng details.student

CREATE TABLE  details.student(
   ID int(10) NOT NULL AUTO_INCREMENT,
   NAME varchar(100) NOT NULL,
   BRANCH varchar(255) NOT NULL,
   PERCENTAGE int(3) NOT NULL,
   PHONE int(10) NOT NULL,
   EMAIL varchar(255) NOT NULL,
   PRIMARY KEY ( ID )
);

3. Tạo lớp Student trong package vn.viettuts.mapper.entity

File: Student.java

package mybatis.mapper.entity;

public class Student {
    private int id;
    private String name;
    private String branch;
    private int percentage;
    private int phone;
    private String email;

    public Student() {
    }

    public Student(String name, String branch, int percentage, int phone, String email) {
        super();
        this.name = name;
        this.branch = branch;
        this.percentage = percentage;
        this.phone = phone;
        this.email = email;
    }

   // các setter và getter

    @Override
    public String toString() {
        return getClass().getName() + "[" + "id = " + id + ", name = " + name + ", branch = " + branch
                + ", percentage = " + percentage  + ", phone = " + phone  + ", email = " + email + "]";
    }
}

4. Tạo file cấu hình MyBatis SqlMapConfig.xml trong resources

Trong file cấu hình này có sử dụng thẻ typeAliases tạo alias Student có type là lớp vn.viettuts.entity.Student. Bằng cách này trong các file cấu hình này hoặc trong các file mapper có thể sử dụng tên tắt Student thay vì vn.viettuts.entity.Student.

File: SqlMapConfig.xml

<?xml version = "1.0" encoding = "UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>

    <typeAliases>
        <typeAlias alias="Student" type="vn.viettuts.entity.Student" />
    </typeAliases>

    <mappers>
        <mapper resource="vn/viettuts/mapper/sql/Student.xml" />
    </mappers>

</configuration>

File cấu hình trỏ đển file mapper vn/viettuts/mapper/sql/Student.xml. File mapper này có nội dung như sau:

5. Tạo file mapper Student.xml

Đối với kết quả trả về của câu lệnh truy vấn select các bạn có thể dùng thuộc tính resultMap hoặc resultType như được khai báo dưới đây.

File: Student.xml

<?xml version = "1.0" encoding = "UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="vn.viettuts.mapper.StudentMapper">
    <insert id="insertStudent" parameterType="Student" >
        INSERT INTO STUDENT (ID, NAME, BRANCH, PERCENTAGE, PHONE, EMAIL ) VALUES (#{id}, #{name}, #{branch}, #{percentage}, #{phone}, #{email});
    </insert>

    <update id="updateStudent" parameterType="Student">
        UPDATE STUDENT SET EMAIL = #{email}, NAME = #{name}, BRANCH = #{branch}, PERCENTAGE = #{percentage}, PHONE = #{phone} WHERE ID = #{id};
    </update>

    <delete id="deleteStudentById" parameterType="int">
        DELETE from STUDENT WHERE ID = #{id};
    </delete>

    <select id="selectAllStudent" resultMap="result">
        SELECT * FROM STUDENT;
    </select>

    <select id="selectStudentById" parameterType="int" resultType="Student">
        SELECT * FROM STUDENT WHERE ID = #{id};
    </select>

    <resultMap id = "result" type = "Student">
       <result property = "id" column = "ID"/>
       <result property = "name" column = "NAME"/>
       <result property = "branch" column = "BRANCH"/>
       <result property = "percentage" column = "PERCENTAGE"/>
       <result property = "phone" column = "PHONE"/>
       <result property = "email" column = "EMAIL"/>
    </resultMap>
</mapper>

Vì các tên cột của bảng details.student giống với các tên trường của lớp vn.viettuts.entity.Student (không phân biệt chữ hoa, chữ thường), nên trong câu lệnh select có id="selectStudentById" ta có thể khai báo kết quả trả về là resultType="Student". Trong trường hợp này là hoàn toàn hợp lệ.

Giả sử có tên cột của bảng trong database nào đó khác tên trường của lớp java thì ta dùng resultMap để ánh xạ chúng với nhau.

File mapper Student.xml có namespace="vn.viettuts.mapper.StudentMapper", StudentMapper là một interface có nội dung như sau:

6. Tạo interface StudentMapper.java

Tạo interface StudentMapper.java và định nghĩa các method có tên giống với các id của câu lệnh trong file mapper Student.xml. Và tham số truyền vào và giá trị trả về của phương thức có kiểu dữ liệu tương ứng.

package vn.viettuts.mapper;

import java.util.List;

import vn.viettuts.entity.Student;

public interface StudentMapper {
    public int insertStudent(Student student);
    public int updateStudent(Student student);
    public int deleteStudentById(int studentId);
    public List<Student> selectAllStudent();
    public Student selectStudentById(int studentId);
}

7. Tạo file AppConfig.java

package vn.viettuts.config;

import java.io.IOException;
import java.io.InputStream;
import java.util.Properties;

import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.mapper.MapperScannerConfigurer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
import org.springframework.jdbc.datasource.DriverManagerDataSource;

import vn.viettuts.mapper.StudentMapper;

@Configuration
@ComponentScan(basePackages = { "vn.viettuts.service" })
public class AppConfig {

    // Tạo bean dataSource
    @Bean
    public DriverManagerDataSource dataSource() throws IOException {
        DriverManagerDataSource dataSource = new DriverManagerDataSource();
        Properties properties = new Properties();
        InputStream user_props = this.getClass()
                .getResourceAsStream("/application.properties");
        properties.load(user_props);
        dataSource.setDriverClassName(
                properties.getProperty("spring.datasource.driver-class-name"));
        dataSource.setUrl(properties.getProperty("spring.datasource.url"));
        dataSource.setUsername(
                properties.getProperty("spring.datasource.username"));
        dataSource.setPassword(
                properties.getProperty("spring.datasource.password"));
        return dataSource;
    }

    // đọc thông tin file cấu hình MyBatis
    @Bean
    public SqlSessionFactoryBean sqlSessionFactory() throws Exception {
        Resource resource = new ClassPathResource("SqlMapConfig.xml");
        SqlSessionFactoryBean sqlSessionFactory = new SqlSessionFactoryBean();
        sqlSessionFactory.setDataSource(dataSource());
        sqlSessionFactory.setConfigLocation(resource);
        return sqlSessionFactory;
    }

    // scan tất cả những mapper package vn.viettuts.mapper
    @Bean
    public MapperScannerConfigurer mapperScannerConfigurer() {
        MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();
        mapperScannerConfigurer.setBasePackage("vn.viettuts.mapper");
        mapperScannerConfigurer.setSqlSessionFactoryBeanName("sqlSessionFactory");
        return mapperScannerConfigurer;
    }

    // Có thể tạo @Bean cho mỗi interface mapper thay vì scan toàn bộ package vn.viettuts.mapper
    /*
    @Bean (name = "studentMapper")
    public StudentMapper studentMapper() throws Exception {
        SqlSessionTemplate sessionTemplate = new SqlSessionTemplate(sqlSessionFactory().getObject());
        return sessionTemplate.getMapper(StudentMapper.class);
    }
    */
}

8. Tạo Student Service

File: interface StudentService.java

package vn.viettuts.service;

import java.util.List;

import vn.viettuts.entity.Student;

public interface StudentService {
    public int insertStudent(Student student);
    public int updateStudent(Student student);
    public int deleteStudentById(int studentId);
    public List<Student> selectAllStudent();
    public Student selectStudentById(int studentId);
}

File: StudentServiceImpl.java

package vn.viettuts.service;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import vn.viettuts.entity.Student;
import vn.viettuts.mapper.StudentMapper;

@Service(value = "studentService")
public class StudentServiceImpl implements StudentService {
    @Autowired
    StudentMapper studentMapper;

    public int insertStudent(Student student) {
        return studentMapper.insertStudent(student);
    }

    public int updateStudent(Student student) {
        return studentMapper.updateStudent(student);
    }

    public int deleteStudentById(int studentId) {
        return studentMapper.deleteStudentById(studentId);
    }

    public List<Student> selectAllStudent() {
        return studentMapper.selectAllStudent();
    }

    public Student selectStudentById(int studentId) {
        return studentMapper.selectStudentById(studentId);
    }
}

9. Tạo class test StudentTest.java

package vn.viettuts.main;

import java.util.List;

import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.support.AbstractApplicationContext;

import vn.viettuts.config.AppConfig;
import vn.viettuts.entity.Student;
import vn.viettuts.service.StudentService;

public class StudentTest {
    public static void main(String[] args) {
        AbstractApplicationContext context = new AnnotationConfigApplicationContext(AppConfig.class);
        StudentService studentService = (StudentService) context.getBean("studentService");

        // create student
        Student student1 = new Student("Jim", "Java Dev", 95, 1234568, "jimdev@gmail.com");

        // insert student
        studentService.insertStudent(student1);
        System.out.println("insert : " + student1);

        // select all student
        List<Student> listStudents = studentService.selectAllStudent();
        System.out.println("select all : ");
        for (Student student : listStudents) {
            System.out.println(student);
        }

        // select student by id
        Student student2 = studentService.selectStudentById(1);

        // update student
        student2.setPercentage(99);
        studentService.updateStudent(student2);
        System.out.println("update : " + student2);

        // delete student by id
        studentService.deleteStudentById(student2.getId());
        System.out.println("delete : " + student2);
    }
}

Kết quả:

select all :
vn.viettuts.entity.Student[id = 1, name = Jim, branch = Java Dev, percentage = 95, phone = 1234568, email = jimdev@gmail.com]
insert : vn.viettuts.entity.Student[id = 1, name = Jim, branch = Java Dev, percentage = 95, phone = 1234568, email = jimdev@gmail.com]
update : vn.viettuts.entity.Student[id = 1, name = Jim, branch = Java Dev, percentage = 99, phone = 1234568, email = jimdev@gmail.com]
delete : vn.viettuts.entity.Student[id = 1, name = Jim, branch = Java Dev, percentage = 99, phone = 1234568, email = jimdev@gmail.com]

Download Source Code

Download Now!

MyBatis là gì?
Cấu hình XML

Recent Updates

MyBatis là gì?MyBatis - AnnotationsMyBatis - Dynamic SQLMyBatis - file cấu hình XMLMybatis - File Mapper XMLMybatis - Stored ProceduresMyBatis Example - mapper bằng AnnotationsMyBatis Example - mapper bằng file XMLMyBatis Example - mapper bằng file XML và InterfaceMyBatis Example - MyBatis + SpringSự khác nhau giữa MyBatis và HibernateTạo MyBatis project trong eclipseSắp Tết 2026 Rồi! - Còn bao nhiêu ngày nữa là đến tết 2026?

VietTuts on facebook

Học Lập Trình Online Miễn Phí - VietTuts.Vn
Danh Sách Bài Học

Học Java | Hibernate | Spring
Học Excel | Excel VBA
Học Servlet | JSP | Struts2
Học C | C++ | C#
Học Python
Học SQL

Bài Tập Có Lời Giải

Bài tập Java
Bài tập C
Bài tập C++
Bài tập C#
Bài tập Python
Ví dụ Excel VBA

Câu Hỏi Phỏng Vấn

201 câu hỏi phỏng vấn java
25 câu hỏi phỏng vấn servlet
75 câu hỏi phỏng vấn jsp
52 câu hỏi phỏng vấn Hibernate
70 câu hỏi phỏng vấn Spring
57 câu hỏi phỏng vấn SQL

Scroll back to top

Copyright © 2016 VietTuts.Vn all rights reserved. | Liên hệ | Chính sách - riêng tư | sitemap.html | sitemap_index.xml
